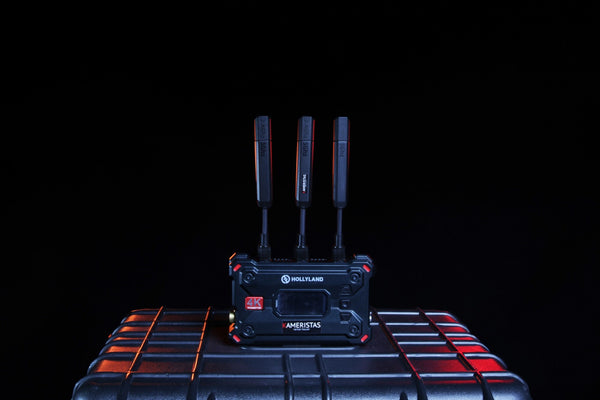

Hollyland Pyro S 4K and Pyro 7 Wireless Transceiver set (nuoma)

Panel Type: LCD

Display Size: 7.0" / 17.8 cm

Native Resolution: 1920 x 1200

Aspect Ratio: 16:9

Touchscreen: Yes

Maximum Brightness: 1200 nits / cd/m2

Contrast Ratio: 1000:1

HDR Support: No

LUT Support: Yes

Image Controls: Focus Peaking, Waveform

Antenna I/O: 2x RP-SMA Male

Video I/O:

• 1x BNC (3G-SDI) Input
• 1x BNC (3G-SDI) Output
• 1x HDMI 1.4b Input
• 1x HDMI 1.4b Output

Embedded Audio: HDMI/SDI: 8-Channel

Audio I/O: 1x 1/8" / 3.5 mm Headphone Output

Built-In Speaker: No

Power I/O: 1x Barrel Input

Other I/O: 1x USB-C (Firmware) Input

Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC [Supports Recording]

Encryption: No.

Wireless Range:

• 1300' / 396.2 m (Line-of-Sight)
• 650' / 198.1 m

Channel Bandwidth: 40 MHz, 20 MHz

Frequency Range:

• US: 5.1 to 5.8 GHz
• US: 2.412 to 2.484 GHz

Latency: 60 ms

RF Power: 23 dBm

RF Sensitivity: -80 dBm

Wi-Fi: No

Bluetooth: No

Mobile App Compatible: Yes, Required: Android & iOS

App Name: HollyView

Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed

Video Format

• HDMI
  • UHD 4K up to 30fps
  • 1080p up to 60fps
  • 1080i up tp 60fps
  • 720p up to 60fps
• SDI
  • 1080p up to 60fps
  • 1080i up to 60fps
  • 720p up to 60fps

Audio Format: 4-Channel

Wireless Video Compression: Compressed

Timecode Support: Yes

Input Power: 10 to 18 VDC at 2.5 A

Battery: 2x L-Series Mount on Included, Interchangeable Plate

Power Consumption: 22 W (Maximum)

Tripod/Accessory Mounting:

• Bottom/Left/Right 1x 1/4"-20 Female

Environmental Resistance: No

Operating Conditions: -10 to 45°C

Storage Conditions: -40 to 60°C

Material of Construction: Aluminum, Magnesium

Dimensions: 7.1 x 5 x 1.3" / 180 x 127 x 31.8 mm (Excluding Antenna)

Weight: 545.00 g, Excluding Antenna

Antenna I/O: Transmitter 3x RP-SMA Male

Video I/O:

• Transmitter: 1x HDMI 1.4b Input
• Transmitter: 1x BNC (3G-SDI) Input

Embedded Audio: HDMI/SDI

Audio I/O: No

Power I/O: Transmitter: 1x Barrel Input

Other I/O: Transmitter: 1x USB-C

Encryption: No.

Wireless Range:

• 396.2 m (Line-of-Sight)
• 198.1 m (Line-of-Sight)

Channel Bandwidth: 40 MHz, 20 MHz

Frequency Range:

• 5.15 to 5.85 GHz
• 2.412 to 2.484 GHz

Latency: 50 ms

RF Sensitivity: -85 dBm

Wi-Fi: Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)

Bluetooth: No

Mobile App Compatible: Yes -  Android & iOS

Cellular Support: No

Video Format:

• HDMI
  • UHD 4K up to 30fps
  • 1080p up to 60fps
  • 1080i up to 60fps
  • 720p up to 60fps
• SDI
  • 1080p up to 60fps
  • 1080i up to 60fps
  • 720p up to 60fps

Audio Format: Not Specified by Manufacturer

Wireless Video Compression: Uncompressed

Timecode Support: Yes

Input Power: 6 to 16 VDC

Battery: Transmitter - 1x L-Series Mount on Fixed Plate

Power Consumption:

• Transmitter: 11 W
• Receiver: 8 W

Status Display: On Transmitter

Environmental Resistance: No

Operating Conditions: -10 to 45°C

Storage Conditions: -40 to 60°C

Material of Construction: Magnesium

Dimensions: Transmitter - 112 x 71.2 x 34.1 mm

Weight: Transmitter - 207.00 g
